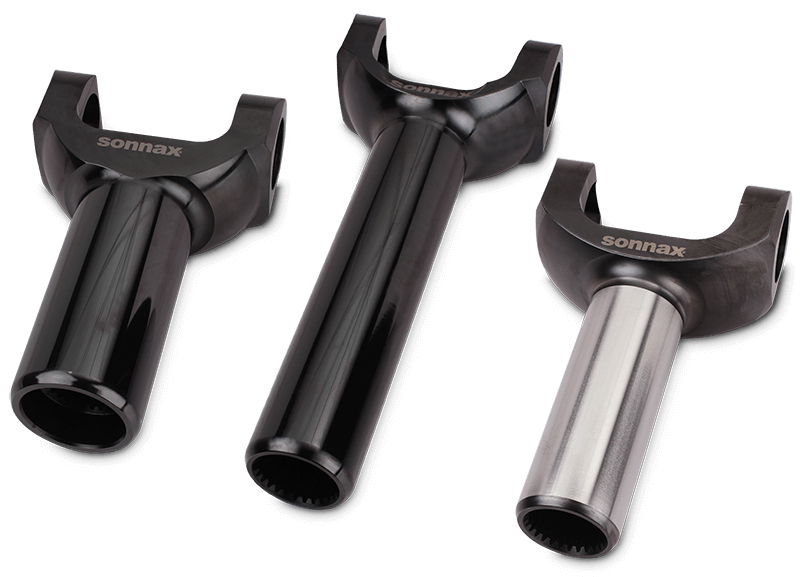

Performance Slip Yokes
Quality & Engineering You Can Trust
A Sonnax slip yoke is NEVER the weak link in your driveline. Choose from bushing and roller bearing yokes for dozens of popular applications, every one optimized to drive power smoothly and reliably from transmission to driveshaft.
- Fully machined from billet steel for enhanced strength & durability
- Leak-free plug tested to 40 psi for optimum sealing
- 1330 & 1350 Series yokes are chromoly steel
Excellent Corrosion Protection
Black oxide finish inhibits rust and pitting.
Superior Fit
Clean-cut splines mate smoothly with output shaft.
Exceptional Balance with Minimal Runout
All dimensions are precision machined to guarantee a consistent, concentric slip yoke.
Optimum Sealing & Yoke Movement
Smooth outer journal for uniform contact with seal prevents leaks and promotes proper fore/aft yoke action.

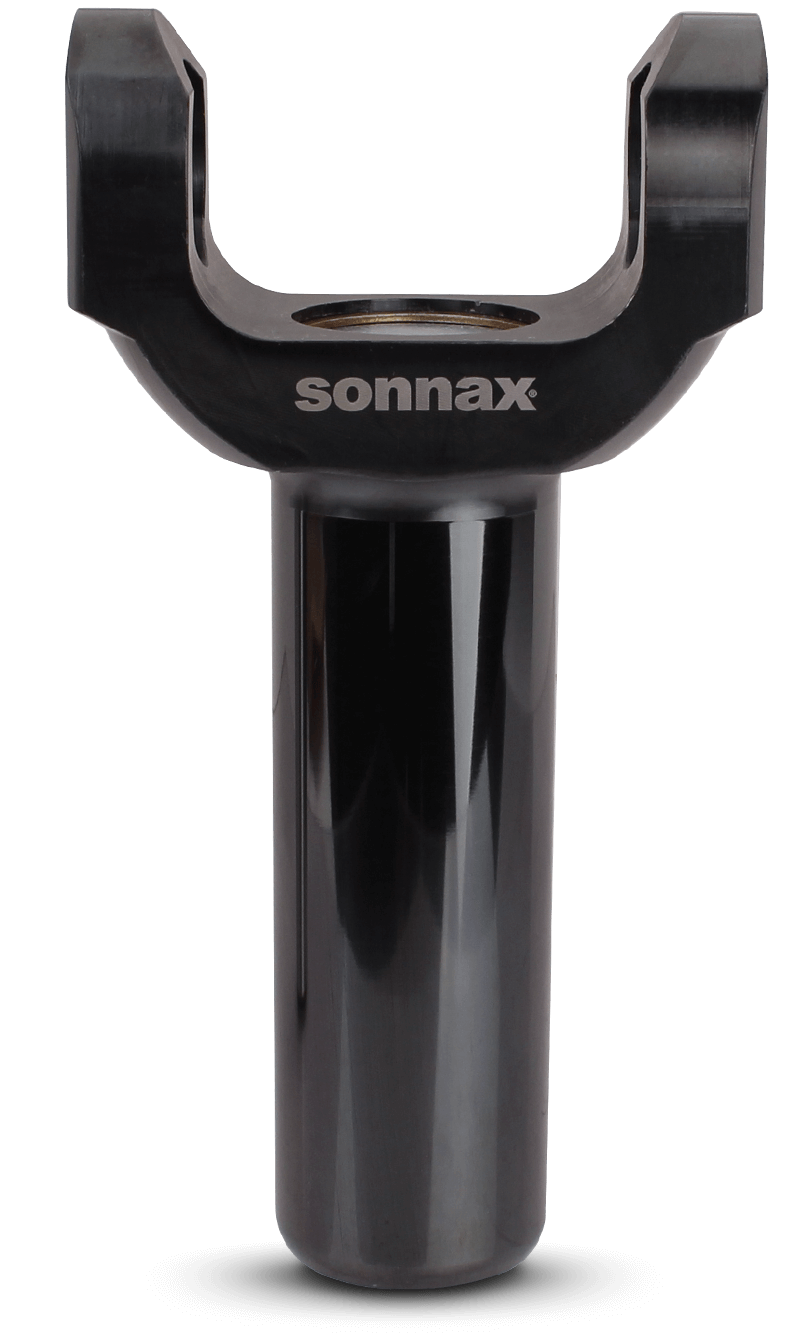

Bushing Style
Increase Strength & Durability Without the Premium Cost
Performance Builds
Sonnax slip yokes set the standard for incredible performance and value — a winning combination you won’t find anywhere else. It’s the best way to upgrade high horsepower and torque capacity vehicles running on the street, drag strip or dirt oval track.
For Everyday Drivers
Installing Sonnax yokes in routine transmission builds helps prevent comeback complaints like:
- Leaking from the back of the transmission
- Noise, vibration & harshness (NVH)
- Clunking & shudder

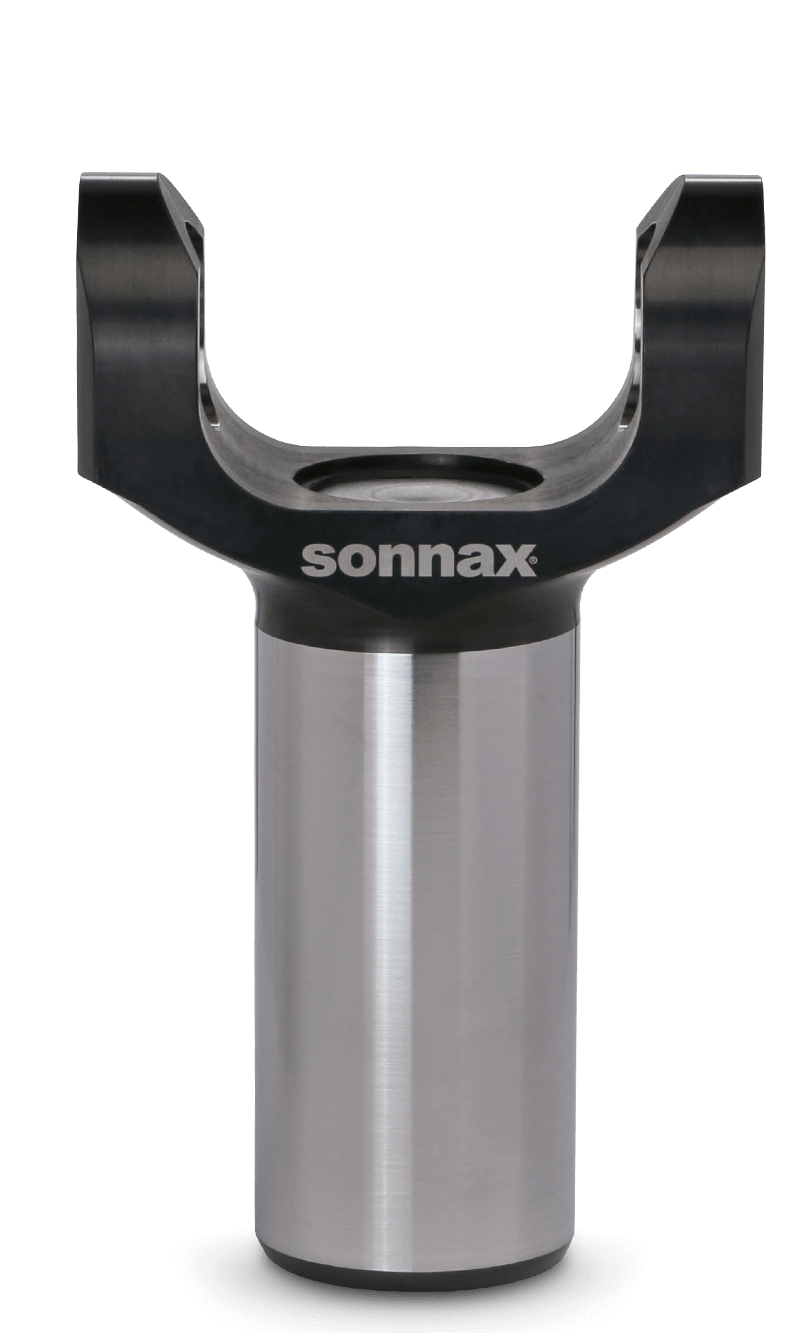

Roller Bearing Style
Rock-Solid Reliability for Extreme Racing in Powerglide and TH400 Applications
Proven indestructible in track and street runs plus torture testing in the lab, Sonnax roller bearing slip yokes guarantee you the titanic strength and durability to run even the most extreme horsepower.
- Forged 4340 chromoly
- Through-hardened, tempered barrel
- Unique Sonnax design increases strength in critical areas
- Use with single- or double-roller bearings
Why go with a roller bearing slip yoke?
Slip yokes found in many common applications run on a bushing inside the transmission tail housing. High-horsepower builds often use a roller bearing instead, so upgrading to a roller bearing yoke is a must — not only for proper fitment, but to guarantee the barrel is hard enough to avoid damage from the bearings. Plus, once you’ve reached that power level, you want a rugged yoke designed to handle it, not a bushing-style yoke that becomes a weak link in your driveline.
The Sonnax line of transmission slip yokes has become a standout product in the performance industry. Quality, durability and competitive pricing is exactly what was needed in the market and this fine product does the job.
Eric Vicary, Midwest Chassis, Inc.
Find the Right Slip Yoke
Need help? Learn how to choose the right slip yoke here.
| Number | Spline | Journal Dia. | Barrel Length | Centerline to End Length | Spline Type | U-Joint Series | Application Info |
|---|---|---|---|---|---|---|---|
| T3-3-2491S | 31 | 1.685" | 3.780" | 5.470" | Full | 1350 | Tremec Magnum-F |
| T3-3-6081HP | 27 | 1.503" | 3.880" | 5.470" | Full | 1350 | Powerglide, 200-4R, TH350, 4L60 (700-R4), 4L60-E; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed |
| T3-3-2491HP | 31 | 1.685" | 4.750" | 6.440" | Full | 1350 | C6, FMX, Toploader 4-speed, ZF 5-speed, Tremec |
| T3-3-2431CBH | 32 | 1.888" | 3.800" | 5.500" | Counterbore | 1350 | For roller bearing tail housing; TH400, 4L80-E; Powerglide with 32-tooth spline; G-Force GSR manual transmission |
| T2-3-5981HP | 28 | 1.499" | 4.500" | 5.910" | Full | 1330 | C4, AOD, Tremec T5, Toploader |
| T2-3-10431HP | 32 | 1.886" | 4.000" | 5.500" | Full | 1310 | TH400, 4L80-E, Muncie M20, 21 & 22, BorgWarner T10 |
| T2-3-6081HP | 27 | 1.503" | 3.880" | 5.470" | Full | 1310 | Powerglide, 200-4R, TH350, 4L60 (700-R4), 4L60-E; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed |
| T2-3-12051HP | 27 | 1.503" | 5.000" | 6.760" | Counterbore | 1330 | Powerglide, 200-4R, TH350, 4L60 (700-R4), 4L60-E; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed |
| T2-3-6081HP8XL | 27 | 1.503" | 6.100" | 8.000" | Full | 1310 | Powerglide, 200-4R, 4L60 (700-R4), 4L60-E, TH350, Muncie & Brinn |
| T3-3-2431HP | 32 | 1.886" | 3.880" | 5.500" | Full | 1350 | TH400, 4L80-E; Muncie M20, 21 & 22; BorgWarner T10 |
| T2-3-2431CBHP | 32 | 1.886" | 3.880" | 5.500" | Counterbore | 1330 | TH400, 4L80-E, Muncie M20, 21 & 22, BorgWarner T10 |
| T2-3-4871HP | 28 | 1.499" | 4.630" | 6.000" | Full | 1310 | C4, AOD, Tremec T5, Toploader |
| T3-3-4281HP | 27 | 1.503" | 5.130" | 6.940" | Counterbore | 1350 | Powerglide, 200-4R, TH350, 4L60 (700-R4), 4L60-E; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed |
| T2-3-4911HP | 27 | 1.503" | 3.630" | 4.880" | Full | 1310 | Powerglide, 200-4R, TH350, 4L60 (700-R4), 4L60-E; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed |
| T2-3-6041HP | 31 | 1.685" | 4.500" | 6.000" | Full | 1330 | C6, FMX, Toploader 4-speed, ZF 5-speed, Tremec |
| T2-3-8251HP | 28 | 1.499" | 5.130" | 6.500" | Full | 1310 | C4, AOD, Tremec T5, Toploader |
| T2-3-10831HP | 32 | 1.886" | 5.130" | 6.760" | Full | 1330 | TH400, 4L80-E, Muncie M20, 21 & 22, BorgWarner T10 |
| T2-3-12081HP | 27 | 1.503" | 3.880" | 5.470" | Full | 1330 | Powerglide, 200-4R, TH350, 4L60 (700-R4), 4L60-E; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed |
| T2-3-13131HP | 32 | 1.886" | 3.250" | 4.880" | Full | 1310 | TH400, 4L80-E, Muncie M20, 21 & 22, BorgWarner T10 |
| T2-3-14061HP | 28 | 1.598" | 5.130" | 6.630" | Full | 1330 | 4R70W |
| T3-3-2431CBHP | 32 | 1.886" | 3.880" | 5.500" | Counterbore | 1350 | TH400, 4L80-E; Muncie M20, 21 & 22; BorgWarner T10 |
| T3-3-3931HP | 30 | 1.680" | 4.760" | 6.630" | Full | 1350 | A727, A833; Tremec T56 with 30-tooth spline |
| T3-3-5431HP | 31 | 1.886" | 5.630" | 7.310" | Full | 1350 | 31-Spline BorgWarner transfer cases |
| T3-3-5551HP | 32 | 1.886" | 6.380" | 7.940" | Counterbore | 1350 | TH400, 4L80-E, Muncie M20, 21 & 22, BorgWarner T10 |
| T3-3-5571HP | 32 | 1.886" | 5.380" | 6.940" | Full | 1350 | TH400, 4L80-E, Muncie M20, 21 & 22, BorgWarner T10 |
| T3-3-6081H | 27 | 1.500" | 3.890" | 5.810" | Full | 1350 | For roller bearing tail housing; Powerglide; TH350, TH350C; Muncie M20, M21 & M22 with 27-tooth spline; Saginaw 3- & 4-speed |
| T3-3-8251HP | 28 | 1.499" | 5.000" | 6.500" | Full | 1350 | C4, AOD, Tremec T5, BorgWarner T10 |
| T3-3-14061HP | 28 | 1.598" | 5.130" | 6.630" | Full | 1350 | 4R70W |
| T3R-3-9161HP | 32 | 1.886" | 6.000" | 7.500" | Full | 3R | TH400, 4L80-E, Muncie M20, 21 & 22, BorgWarner T10 |
Learn All About Sonnax Slip Yokes
How to Measure a Slip Yoke
Measure OE slip yoke with a precision tool to determine which Sonnax yoke you need. Centerline to end length, journal size and U-joint series are critical dimensions requiring accurate measurements.
- Some slip yokes have missing splines — include the missing spline in your count or count the splines on the transmission output shaft.
- Also check if the OE yoke has a counterbore and whether the transmission tail housing uses a bushing or roller bearing.
- A Spline Count
- B Journal Dia.
- C Centerline to End Length
- D Barrel Length
- E U-Joint Width*
- F U-Joint Cap Diameter*
*U-joint bores in yoke will be slightly larger than the actual U-joint dimensions given in the chart below.
How to Determine a U-Joint Series
| U-Joint Series |
E U-Joint Width (inches) |
F U-Joint Cap Diameter (inches) |
|---|---|---|
| 3R | 2.562 | 1.125 |
| 1310 | 3.219 | 1.062 |
| 1330 | 3.622 | 1.062 |
| 1350 | 3.622 | 1.188 |
| 1410 | 4.188 | 1.188 |
| 1480 | 4.188 | 1.375 |
| 1485 | 4.178 | 1.375 |
| 1550/1555 | 4.964 | 1.375 outside snap rings |
Measure the inside snap ring, indicated on the diagram as G.
